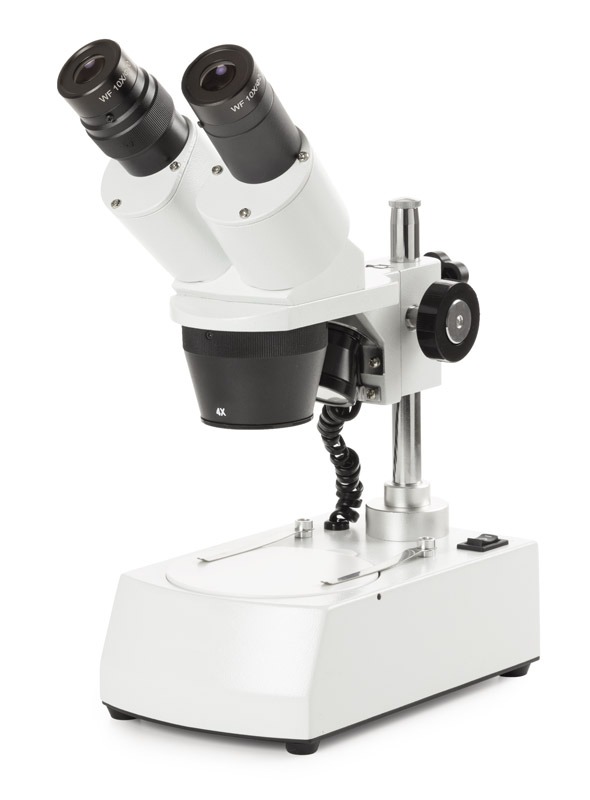

Stereomikroskop sladdlöst AP-8 LED

Stereomikroskop sladdlöst AP-8 LED

En robust stereolupp med fin mekanik och optik!

Eyepieces
Paired locked-in widefield eyepieces WF10x/20 with eye shades.

Head
Binocular 45° inclined tubes with diopter adjustment on one tube,
interpupillary distance adjustable between 55 and 75 mm.

Objectives
T wo objective pair 2x and 4x objectives, mounted in a revolvable nosepiece.
Magnifications 20 and 40x and a field of view 10/5 mm.
Other magnifications can be reached with the interchangeable widefield eyepieces
WF 5x, WF 15x or WF 20x

Stand
The binocular head is vertically adjustable along the stand rod.
Rack and pinion focusing with slip-clutch mechanism, range 40 mm.
The flat stand base is provided with an interchangeable black-white stage plate,
2 object clamps and an additional transparent stage plate for transmitted illumination

Illumination
Incident and transmitted LED (Light Emitting Diodes) illuminator.
The transmitted LED illuminator has a build-in reflector The LED illuminator can be
used continuously for 35 hours.

Delivered with three rechargeable 200 mA NiMh AA batteries and 200 mA battery charger

Packing
Complete with dust cover in Styrofoam case.
